Cobbler全自动批量安装部署Linux系统
2014年04月10日 CentOS 评论数 1 ⁄ 被围观 87,696次+

说明:

Cobbler服务器系统:CentOS 5.10 64位

IP地址:192.168.21.128

需要安装部署的Linux系统:

eth0(第一块网卡,用于外网)IP地址段:192.168.21.160-192.168.21.200

eth1(第二块网卡,用于内网)IP地址段:10.0.0.160-10.0.0.200

子网掩码:255.255.255.0

网关:192.168.21.2

DNS:8.8.8.8  8.8.4.4

所有服务器均支持PXE网络启动

实现目的:通过配置Cobbler服务器,全自动批量安装部署Linux系统

具体操作:

第一部分:在Cobbler服务器上操作

一、关闭SELINUX

vi /etc/selinux/config

#SELINUX=enforcing #注释掉

#SELINUXTYPE=targeted #注释掉

SELINUX=disabled #增加

:wq!  #保存退出

setenforce 0 #使配置立即生效

二、配置防火墙,开启TCP:80端口、TCP:25151端口、UDP:69端口

vi /etc/sysconfig/iptables  #编辑

-A RH-Firewall-1-INPUT -m state --state NEW -m tcp -p tcp --dport 80 -j ACCEPT  #http服务需要此端口

-A RH-Firewall-1-INPUT -m state --state NEW -m udp -p udp --dport 69 -j ACCEPT  #tftp服务需要此端口

-A RH-Firewall-1-INPUT -m state --state NEW -m tcp -p tcp --dport 25151 -j ACCEPT  #cobbler需要此端口

:wq!  #保存退出

/etc/init.d/iptables restart #最后重启防火墙使配置生效

三、安装Cobbler

cd /usr/local/src

wget http://dl.fedoraproject.org/pub/epel/5/x86_64/epel-release-5-4.noarch.rpm  #CentOS 5.x 64位

rpm -ivh  epel-release-5-4.noarch.rpm

备注:

wget http://dl.fedoraproject.org/pub/epel/5/i386/epel-release-5-4.noarch.rpm  #CentOS 5.x 32位

wget http://dl.fedoraproject.org/pub/epel/6/x86_64/epel-release-6-8.noarch.rpm  #CentOS6.x 64位

wget http://dl.fedoraproject.org/pub/epel/6/i386/epel-release-6-8.noarch.rpm  #CentOS6.x 32位

yum  install cobbler tftp tftp-server xinetd  dhcp  httpd  rsync  #安装cobbler

yum  install  pykickstart  debmirror  python-ctypes   cman   #安装运行cobbler需要的软件包

四、配置Cobbler

1、设置http服务

vi /etc/httpd/conf.d/wsgi.conf

LoadModule wsgi_module modules/mod_wsgi.so  #取消前面的注释

:wq! #保存退出

chkconfig httpd on  #设置开机启动

service httpd start #启动

2、设置tftp服务开机启动

vi  /etc/cobbler/tftpd.template  #编辑

service tftp

{

disable                 = no #修改为no

socket_type             = dgram

protocol                = udp

wait                    = yes

user                    = root

server                  = /usr/sbin/in.tftpd

server_args             = -B 1380 -v -s /tftpboot

per_source              = 11

cps                     = 100 2

flags                   = IPv4

}

:wq! #保存退出

3、设置rsync服务开机启动

vi /etc/xinetd.d/rsync  #编辑配置文件,设置开机启动rsync

service rsync

{

disable = no   #修改为no

socket_type     = stream

wait            = no

user            = root

server          = /usr/bin/rsync

server_args     = --daemon

log_on_failure  += USERID

}

:wq! #保存退出

/etc/init.d/xinetd start  #启动(CentOS中是以xinetd 来管理Rsync和tftp服务的

4、配置cobbler相关参数

vi /etc/debmirror.conf  #注释掉 @dists 和 @arches 两行

#@dists="sid";

#@arches="i386";

:wq! #保存退出

openssl passwd -1 -salt 'osyunwei' '123456#生成默认模板下系统安装完成之后root账号登录密码

$1$osyunwei$sEV8iwXXuR4CqzLXyLnzm0  #记录下这行,下面会用到

vi /etc/cobbler/settings  #编辑,修改

default_password_crypted: "$1$osyunwei$sEV8iwXXuR4CqzLXyLnzm0"

next_server: 192.168.21.128

server: 192.168.21.128

manage_dhcp: 1

default_kickstart: /var/lib/cobbler/kickstarts/default.ks

:wq! #保存退出

系统运维  www.osyunwei.com  温馨提醒:qihang01原创内容©版权所有,转载请注明出处及原文链接

5、配置dhcp服务器

vi /etc/cobbler/dhcp.template #编辑,修改

subnet 192.168.21.0 netmask 255.255.255.0 { #设置网段

option routers             192.168.21.2; #设置网关

option domain-name-servers 8.8.8.8,8.8.4.4; #设置dns服务器地址

option subnet-mask         255.255.255.0; #设置子网掩码

range dynamic-bootp        192.168.21.160 192.168.21.200;  #设置dhcp服务器IP地址租用的范围

default-lease-time         21600;  #默认租约时间

max-lease-time             43200;  #最大租约时间

next-server                $next_server;

class "pxeclients" {

match if substring (option vendor-class-identifier, 0, 9) = "PXEClient";

if option pxe-system-type = 00:02 {

filename "ia64/elilo.efi";

} else if option pxe-system-type = 00:06 {

filename "grub/grub-x86.efi";

} else if option pxe-system-type = 00:07 {

filename "grub/grub-x86_64.efi";

} else {

filename "pxelinux.0";

}

}

}

:wq! #保存退出

vi /etc/sysconfig/dhcpd   #指定DHCP服务的网络接口

DHCPDARGS=eth0

:wq!  #保存退出

dhcpd  #测试dhcp服务器配置是否正确

chkconfig dhcpd on   #设置开机启动

chkconfig cobblerd on   #设置开机启动

cobbler get-loaders  #安装cobbler相关工具包,否则检查cobbler配置会报错

service cobblerd start  #启动cobbler

cobbler sync  #同步配置文件到dhcp服务器

service dhcpd start    #启动dhcp服务

6、设置cobbler相关服务启动脚本

vi /etc/rc.d/init.d/cobbler #编辑,添加以下代码

#!/bin/sh

# chkconfig: - 80 90

# description:cobbler

case $1 in

start)

/etc/init.d/httpd start

/etc/init.d/xinetd start

/etc/init.d/dhcpd start

/etc/init.d/cobblerd start

;;

stop)

/etc/init.d/httpd stop

/etc/init.d/xinetd stop

/etc/init.d/dhcpd stop

/etc/init.d/cobblerd stop

;;

restart)

/etc/init.d/httpd restart

/etc/init.d/xinetd restart

/etc/init.d/dhcpd restart

/etc/init.d/cobblerd restart

;;

status)

/etc/init.d/httpd status

/etc/init.d/xinetd status

/etc/init.d/dhcpd status

/etc/init.d/cobblerd status

;;

sync)

cobbler sync

;;

*)

echo "Input error,please in put 'start|stop|restart|status|sync'!";

exit 2>&1 >/dev/null &

;;

esac

:wq! #保存退出

chmod +x /etc/rc.d/init.d/cobbler  #添加脚本执行权限

chkconfig cobbler on  #添加开机启动

service cobbler  restart  #重启cobbler

cobbler  check  #检查cobbler配置,出现下面的提示,SELinux和防火墙前面已经设置过了,不用理会

系统运维  www.osyunwei.com  温馨提醒:qihang01原创内容©版权所有,转载请注明出处及原文链接

=====================================================================================

The following are potential configuration items that you may want to fix:

1 : SELinux is enabled. Please review the following wiki page for details on ensuring cobbler works correctly in your SELinux environment:

https://github.com/cobbler/cobbler/wiki/Selinux

2 : since iptables may be running, ensure 69, 80/443, and 25151 are unblocked

Restart cobblerd and then run 'cobbler sync' to apply changes

=====================================================================================

五、挂载系统安装镜像到http服务器站点目录

上传系统安装镜像文件CentOS-5.10-x86_64-bin-DVD-1of2.iso到/usr/local/src/目录

mkdir -p /var/www/html/os/CentOS-5.10-x86_64  #创建挂载目录

mount -t iso9660 -o loop /usr/local/src/CentOS-5.10-x86_64-bin-DVD-1of2.iso  /var/www/html/os/CentOS-5.10-x86_64 #挂载系统镜像

vi /etc/fstab   #添加以下代码。实现开机自动挂载

/usr/local/src/CentOS-5.10-x86_64-bin-DVD-1of2.iso   /var/www/html/os/CentOS-5.10-x86_64   iso9660    defaults,ro,loop  0 0

:wq! #保存退出

备注:iso9660使用df  -T 查看设备  卸载:umount  /var/www/html/os/CentOS-5.10-x86_64

重复上面的操作,把自己需要安装的CentOS系统镜像文件都挂载到/var/www/html/os/目录下

例如:

CentOS-5.10-x86_64-bin-DVD-1of2.iso

CentOS-6.5-x86_64-bin-DVD1.iso

六、创建kickstarts自动安装脚本

cd /var/lib/cobbler/kickstarts  #进入默认Kickstart模板目录

vi /var/lib/cobbler/kickstarts/CentOS-5.10-x86_64.ks  #创建CentOS-5.10-x86_64安装脚本

# Kickstart file automatically generated by anaconda.

install

url --url=http://192.168.21.128/cobbler/ks_mirror/CentOS-5.10-x86_64-x86_64/

lang en_US.UTF-8

zerombr  yes

key --skip

keyboard us

network --device eth0 --bootproto dhcp  --onboot on

#network --device eth0 --bootproto static --ip 192.168.21.250 --netmask 255.255.255.0 --gateway 192.168.21.2 --nameserver 8.8.8.8 --hostname CentOS5.10

rootpw --iscrypted $1$QqobZZ1g$rYnrawi9kYlEeUuq1vcRS/

firewall --enabled --port=22:tcp

authconfig --enableshadow --enablemd5

selinux --disabled

timezone Asia/Shanghai

bootloader --location=mbr --driveorder=sda

# The following is the partition information you requested

# Note that any partitions you deleted are not expressed

# here so unless you clear all partitions first, this is

# not guaranteed to work

#clearpart --linux

clearpart --all --initlabel

part / --bytes-per-inode=4096 --fstype="ext3" --size=2048

part /boot --bytes-per-inode=4096 --fstype="ext3" --size=128

part swap --bytes-per-inode=4096 --fstype="swap" --size=500

part /data --bytes-per-inode=4096 --fstype="ext3" --grow --size=1

reboot

%packages

ntp

@base

@core

@dialup

@editors

@text-internet

keyutils

trousers

fipscheck

device-mapper-multipath

%post

#同步系统时间

ntpdate cn.pool.ntp.org

hwclock --systohc

echo -e "0 1 * * * root /usr/sbin/ntpdate cn.pool.ntp.org > /dev/null"  >> /etc/crontab

service crond restart

#添加用户组

groupadd maintain

groupadd develop

mkdir -p /home/maintain

mkdir -p /home/develop

#添加用户

useradd -g maintain  user01  -d /home/maintain/user01 -m

echo "123456"|passwd user01 --stdin

useradd -g maintain user02  -d /home/maintain/user02 -m

echo "123456"|passwd user02 --stdin

useradd -g maintain user03  -d /home/maintain/user03 -m

echo "123456"|passwd user03 --stdin

useradd -g maintain user04  -d /home/maintain/user04 -m

echo "123456"|passwd user04 --stdin

#禁止root用户直接登录系统

sed -i "s/#PermitRootLogin yes/PermitRootLogin no/g" '/etc/ssh/sshd_config'

service sshd restart

#禁止开机启动的服务

chkconfig acpid off

chkconfig atd off

chkconfig autofs off

chkconfig bluetooth off

chkconfig cpuspeed off

chkconfig firstboot off

chkconfig gpm off

chkconfig haldaemon off

chkconfig hidd off

chkconfig ip6tables off

chkconfig isdn off

chkconfig messagebus off

chkconfig nfslock off

chkconfig pcscd off

chkconfig portmap off

chkconfig rpcgssd off

chkconfig rpcidmapd off

chkconfig yum-updatesd off

chkconfig sendmail off

#允许开机启动的服务

chkconfig crond on

chkconfig kudzu on

chkconfig network on

chkconfig readahead_early on

chkconfig sshd on

chkconfig syslog on

#禁止使用Ctrl+Alt+Del快捷键重启服务器

sed -i "s/ca::ctrlaltdel:\/sbin\/shutdown -t3 -r now/#ca::ctrlaltdel:\/sbin\/shutdown -t3 -r now/g" '/etc/inittab'

telinit q

#优化系统内核

echo -e "ulimit -c unlimited"  >> /etc/profile

echo -e "ulimit -s unlimited"  >> /etc/profile

echo -e "ulimit -SHn 65535"  >> /etc/profile

source  /etc/profile

sed -i "s/net.ipv4.ip_forward = 0/net.ipv4.ip_forward = 1/g" '/etc/sysctl.conf'

echo -e "net.core.somaxconn = 262144"  >> /etc/sysctl.conf

echo -e "net.core.netdev_max_backlog = 262144"  >> /etc/sysctl.conf

echo -e "net.core.wmem_default = 8388608"  >> /etc/sysctl.conf

echo -e "net.core.rmem_default = 8388608"  >> /etc/sysctl.conf

echo -e "net.core.rmem_max = 16777216"  >> /etc/sysctl.conf

echo -e "net.core.wmem_max = 16777216"  >> /etc/sysctl.conf

echo -e "net.ipv4.netfilter.ip_conntrack_max = 131072"  >> /etc/sysctl.conf

echo -e "net.ipv4.netfilter.ip_conntrack_tcp_timeout_established = 180"  >> /etc/sysctl.conf

echo -e "net.ipv4.route.gc_timeout = 20"  >> /etc/sysctl.conf

echo -e "net.ipv4.ip_conntrack_max = 819200"  >> /etc/sysctl.conf

echo -e "net.ipv4.ip_local_port_range = 10024  65535"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_retries2 = 5"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_fin_timeout = 30"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_syn_retries = 1"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_synack_retries = 1"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_timestamps = 0"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_tw_recycle = 1"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_tw_len = 1"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_tw_reuse = 1"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_keepalive_time = 120"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_keepalive_probes = 3"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_keepalive_intvl = 15"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_max_tw_buckets = 36000"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_max_orphans = 3276800"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_max_syn_backlog = 262144"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_wmem = 8192 131072 16777216"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_rmem = 32768 131072 16777216"  >> /etc/sysctl.conf

echo -e "net.ipv4.tcp_mem = 94500000 915000000 927000000"  >> /etc/sysctl.conf

/sbin/sysctl -p

#执行外部脚本

cd /root

wget http://192.168.21.128/cobbler/ks_mirror/config/autoip.sh

sh /root/autoip.sh

:wq! #保存退出

vi /var/www/cobbler/ks_mirror/config/autoip.sh  #创建脚本,自动设置Linux系统静态IP地址、DNS、网关、计算机名称

#!/bin/sh

ROUTE=$(route -n|grep "^0.0.0.0"|awk '{print $2}')

BROADCAST=$(/sbin/ifconfig eth0|grep -i bcast|awk '{print $3}'|awk -F":" '{print $2}')

HWADDR=$(/sbin/ifconfig eth0|grep -i HWaddr|awk '{print $5}')

IPADDR=$(/sbin/ifconfig eth0|grep "inet addr"|awk '{print $2}'|awk -F":" '{print $2}')

NETMASK=$(/sbin/ifconfig eth0|grep "inet addr"|awk '{print $4}'|awk -F":" '{print $2}')

cat >/etc/sysconfig/network-scripts/ifcfg-eth0<<EOF

DEVICE=eth0

BOOTPROTO=static

BROADCAST=$BROADCAST

HWADDR=$HWADDR

IPADDR=$IPADDR

NETMASK=$NETMASK

GATEWAY=$ROUTE

ONBOOT=yes

EOF

IPADDR1=$(echo $IPADDR|awk -F"." '{print $4}')

cat >/etc/sysconfig/network-scripts/ifcfg-eth1<<EOF

DEVICE=eth1

BOOTPROTO=static

BROADCAST=10.0.0.255

HWADDR=$(/sbin/ifconfig eth1|grep -i HWaddr|awk '{print $5}')

IPADDR=10.0.0.$IPADDR1

NETMASK=255.255.255.0

ONBOOT=yes

EOF

HOSTNAME=OsYunWei_HZ_$(echo $IPADDR|awk -F"." '{print $4}')

cat >/etc/sysconfig/network<<EOF

NETWORKING=yes

NETWORKING_IPV6=no

HOSTNAME=$HOSTNAME

GATEWAY=$ROUTE

EOF

echo "127.0.0.1  $HOSTNAME" >> /etc/hosts

hostname=$HOSTNAME

echo "nameserver  8.8.8.8"  > /etc/resolv.conf

echo "nameserver  8.8.4.4" >> /etc/resolv.conf

:wq!  #保存退出

七、导入系统镜像到cobbler

cobbler import --path=/var/www/html/os/CentOS-5.10-x86_64  --name=CentOS-5.10-x86_64  --arch=x86_64  #导入系统镜像文件,需要一段时间

cd /var/www/cobbler/ks_mirror  #进入系统镜像导入目录

命令格式:cobbler import --path=镜像路径 -- name=安装引导名 --arch=32位或64位

重复上面的操作,把其他的系统镜像文件导入到cobbler

八、设置profile,按照操作系统版本分别关联系统镜像文件和kickstart自动安装文件

在第一次导入系统镜像时,cobbler会给安装镜像指定一个默认的kickstart自动安装文件

例如:CentOS-5.10-x86_64版本的kickstart自动安装文件为:/var/lib/cobbler/kickstarts/sample.ks

cobbler profile report --name  CentOS-5.10-x86_64  #查看profile设置

cobbler distro report --name CentOS-5.10-x86_64 #查看安装镜像文件信息

cobbler profile remove --name=CentOS-5.10-x86_64  #移除profile

cobbler profile add --name=CentOS-5.10-x86_64 --distro=CentOS-5.10-x86_64 --kickstart=/var/lib/cobbler/kickstarts/CentOS-5.10-x86_64.ks  #添加

cobbler profile edit --name=CentOS-5.10-x86_64 --distro=CentOS-5.10-x86_64 --kickstart=/var/lib/cobbler/kickstarts/CentOS-5.10-x86_64.ks  #编辑

命令:cobbler profile add|edit|remove --name=安装引导名 --distro=系统镜像名 --kickstart=kickstart自动安装文件路径

--name:自定义的安装引导名,注意不能重复

--distro:系统安装镜像名,用cobbler distro list可以查看

--kickstart:与系统镜像文件相关联的kickstart自动安装文件

#查看Cobbler列表

cobbler list

cobbler report

cobbler profile report

cobbler distro list

#通过profile查找对应的kickstart自动安装文件文件

例如:

ksfile=$( cobbler profile report --name  CentOS-5.10-x86_64|grep -E '^Kickstart' |head -n 1|cut -d ':' -f 2 );cat $ksfile;

重复上面的操作,把其他的系统镜像文件和kickstart自动安装文件关联起来

注意:

1、kickstart自动安装文件需要预先配置好

2、每次修改完配置文件,需要执行一次同步操作:cobbler sync 配置才能生效

3、kickstart自动安装文件可以用工具生成(需要用到图形界面操作)

yum  install system-config-kickstart #安装

yum groupinstall "X Window System" #安装X Window图形界面

system-config-kickstart #运行kickstart配置

service  cobbler  sync  #与cobbler sync作用相同

service  cobbler  restart  #重启cobbler

第二部分:设置要安装的服务器从网络启动

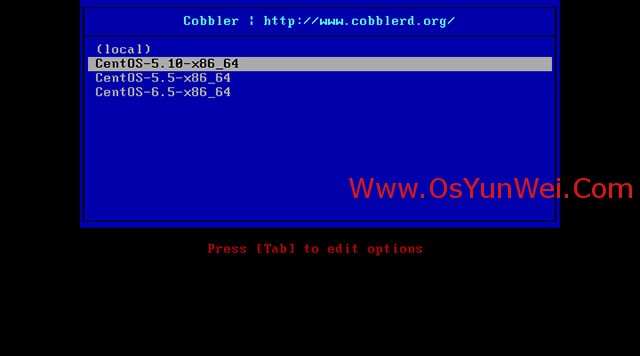

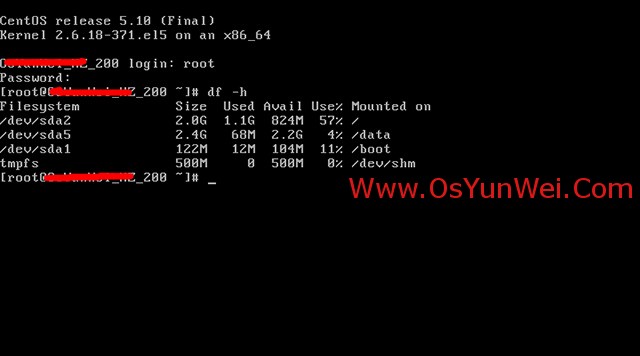

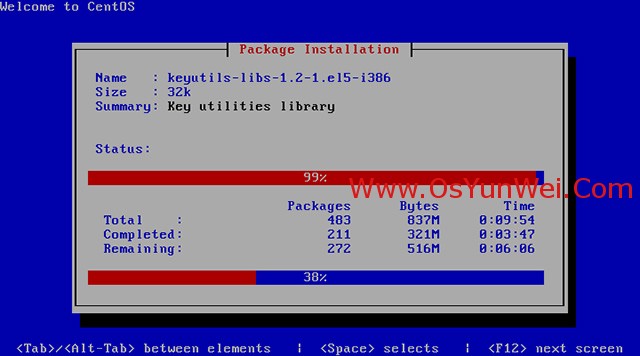

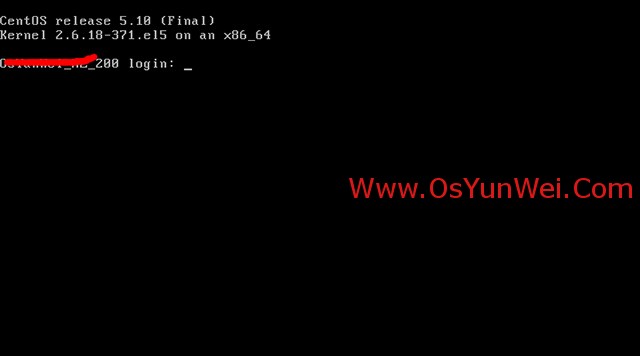

开机之后,如下图所示,根据需要选择相应的系统版本进行安装,安装完成之后,系统会自动重启

系统运维  www.osyunwei.com  温馨提醒:qihang01原创内容©版权所有,转载请注明出处及原文链接

重新安装系统:

在需要重装系统的服务器上安装koan

wget http://dl.fedoraproject.org/pub/epel/5/x86_64/koan-2.4.0-1.el5.noarch.rpm  #CentOS 5.X

rpm -ivh koan-2.4.0-1.el5.noarch.rpm  #安装koan

http://dl.fedoraproject.org/pub/epel/6/x86_64/koan-2.4.0-1.el6.noarch.rpm  #CentOS 6.X

yum  install  cobbler  debmirror  pykickstart  python-ctypes  cman   #安装koan运行依赖包(需要设置epel源

koan --list=profiles  --server=192.168.21.128  #查看Cobbler服务器系统镜像列表

koan --replace-self --server=192.168.21.128 --profile=CentOS-5.10-x86_64  #选择要重装的系统

reboot #重新启动系统进行自动安装

扩展阅读:

Cobbler目录说明:

1、Cobbler配置文件目录:/etc/cobbler

/etc/cobbler/settings   #cobbler主配置文件

/etc/cobbler/dhcp.template   #DHCP服务的配置模板

/etc/cobbler/tftpd.template   #tftp服务的配置模板

/etc/cobbler/rsync.template   #rsync服务的配置模板

/etc/cobbler/iso   #iso模板配置文件

/etc/cobbler/pxe   #pxe模板文件

/etc/cobbler/power  #电源的配置文件

/etc/cobbler/users.conf   #Web服务授权配置文件

/etc/cobbler/users.digest   #用于web访问的用户名密码配置文件

/etc/cobbler/dnsmasq.template   #DNS服务的配置模板

/etc/cobbler/modules.conf   #Cobbler模块配置文件

2、Cobbler数据目录:/var/lib/cobbler

/var/lib/cobbler/config #配置文件

/var/lib/cobbler/triggers  #Cobbler命令

/var/lib/cobbler/kickstarts  #默认存放kickstart文件

/var/lib/cobbler/loaders  #存放的各种引导程序

3、系统安装镜像目录:/var/www/cobbler

/var/www/cobbler/ks_mirror #导入的系统镜像列表

/var/www/cobbler/images  #导入的系统镜像启动文件

/var/www/cobbler/repo_mirror #yum源存储目录

4、日志目录:/var/log/cobbler

/var/log/cobbler/install.log  #客户端系统安装日志

/var/log/cobbler/cobbler.log  #cobbler日志

至此,Cobbler全自动批量安装部署Linux系统完成。



  系统运维技术交流QQ群:①185473046 系统运维技术交流□Ⅰ ②190706903 系统运维技术交流™Ⅱ ③203744115 系统运维技术交流™Ⅲ

目前有 1 条留言 其中:访客:1 条, 博主:0 条

  1. 837861243@qq.com : 2014年05月08日17:28:04  1楼

    支持老大,领教了。

给我留言

您必须 [ 登录 ] 才能发表留言!



Copyright© 2011-2024 系统运维 All rights reserved
版权声明:本站所有文章均为作者原创内容,如需转载,请注明出处及原文链接
陕ICP备11001040号-3
