Linux下nginx配置https协议访问
2016年04月30日 Nginx 暂无评论 ⁄ 被围观 18,580次+

一、配置nginx支持https协议访问,需要在编译安装nginx的时候添加相应的模块--with-http_ssl_module

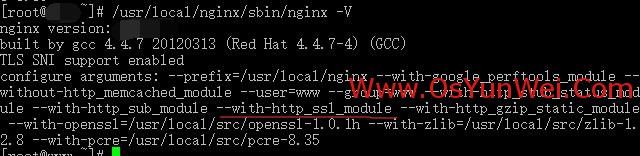

查看nginx编译参数:/usr/local/nginx/sbin/nginx -V

如下所示:

configure arguments: --prefix=/usr/local/nginx --with-google_perftools_module --without-http_memcached_module --user=www --group=www --with-http_stub_status_module --with-http_sub_module --with-http_ssl_module --with-http_gzip_static_module --with-openssl=/usr/local/src/openssl-1.0.1h --with-zlib=/usr/local/src/zlib-1.2.8 --with-pcre=/usr/local/src/pcre-8.35

如果没有--with-http_gzip_static_module这个参数,需要重新编辑nginx

二、防火墙开启https协议默认端口443

vi /etc/sysconfig/iptables #编辑防火墙配置文件,添加以下代码

-A INPUT -m state --state NEW -m tcp -p tcp --dport 443 -j ACCEPT

:wq! #保存退出

service iptables restart  #重启防火墙

三、创建https证书

确保机器上安装了openssl和openssl-devel

yum install openssl  openssl-devel  #CentOS使用yum命令安装

mkdir   /usr/local/nginx/conf/ssl   #创建证书存放目录

cd /usr/local/nginx/conf/ssl  #进入目录

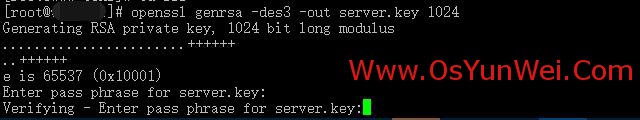

创建服务器私钥:openssl genrsa -des3 -out server.key 1024  #根据提示输入证书口令

创建签名请求的证书(CSR):openssl req -new -key server.key -out server.csr  #输入上面设置的口令

#根据提示输入相应的信息

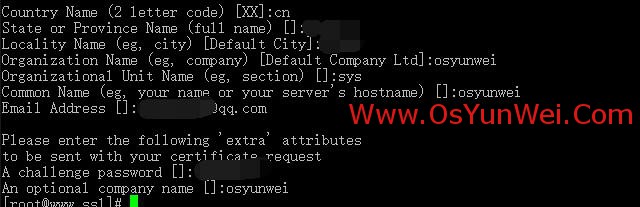

Country Name (2 letter code) [XX]:cn  #国家

State or Province Name (full name) []:zhejiang  #省份

Locality Name (eg, city) [Default City]:hangzhou  #城市

Organization Name (eg, company) [Default Company Ltd]:osyunwei  #公司

Organizational Unit Name (eg, section) []:sys  #部门

Common Name (eg, your name or your server's hostname) []:osyunwei   #主机名称

Email Address []:xxx@qq.com  #邮箱

Please enter the following 'extra' attributes

to be sent with your certificate request

A challenge password []:123456  #证书请求密钥,CA读取证书的时候需要输入密码

An optional company name []:osyunwei  #公司名称,CA读取证书的时候需要输入密码

openssl rsa -in server.key -out server_nopassword.key  #对key进行解密

openssl x509 -req -days 365 -in server.csr -signkey server_nopassword.key -out server.crt

#标记证书使用上述私钥和CSR

四、修改nginx配置文件,加载ssl证书

vi   /usr/local/nginx/conf/nginx.conf  #编辑

listen       80;

listen       443;

ssl on;

ssl_certificate /usr/local/nginx/conf/ssl/server.crt;

ssl_certificate_key /usr/local/nginx/conf/ssl/server_nopassword.key;

ssl_session_timeout 10m;

ssl_session_cache shared:SSL:10m;

ssl_protocols TLSv1 TLSv1.1 TLSv1.2;

ssl_ciphers ALL:!ADH:!EXPORT56:-RC4+RSA:+HIGH:+MEDIUM:!EXP;

ssl_prefer_server_ciphers on;

fastcgi_param HTTPS $https if_not_empty;  #有https协议时自动使用https,否则忽略这个参数。

:wq! #保存退出

service nginx restart #重启nginx

rewrite ^(.*) https://www.osyunwei.com$1 permanent;   #可以把http协议重定向到https上面

#301跳转也可以把http协议重定向到https上面

server {

listen 80;

server_name www.osyunwei.com;

return 301 https://$host$request_uri;

}

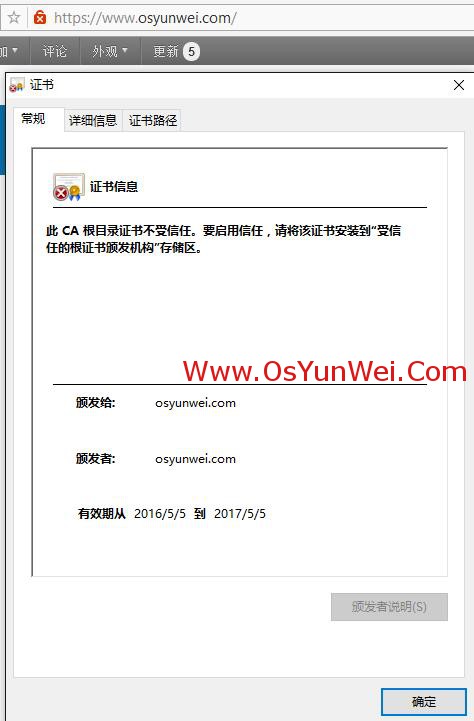

使用https协议打开网址,如下图所示:

至此,Linux下nginx配置https协议访问完成。
